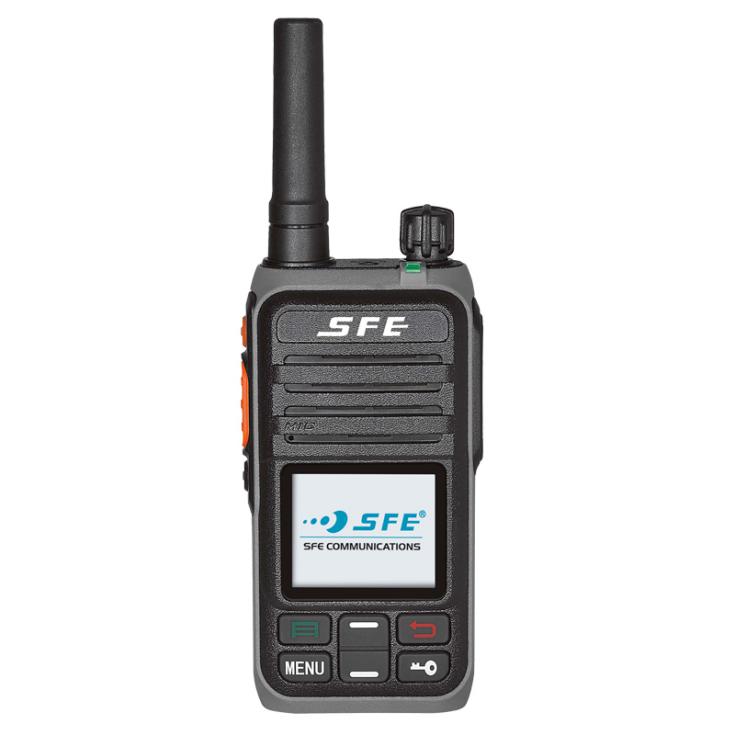

SE368 PoC Network Radio

Production Introduction:

SE368 is a compact and rugged design Push-to-talk Over Cellular(PoC) network radio that utilizes LTE/WCDMA/GSM cellular infrastructures and standards to enable instant two-way communications over Wide Area. It delivers Press-to-Talk(PTT) services over existing public mobile network and allows users to access a nationwide/worldwide radio network without distance limitation. SE368 is designed with powerful and superb clear audio output, large battery capacity 5200mAh and auto battery save function to realize optimal and durable performance, and ensure high-efficient instant communications. Features of multiple call modes such as group call, single call and good friends call provide reliable team communications to deliver enhanced efficiency and productivity. It provides user location, GPS tracking function, emergency call(SOS), easy-to-read color display, management platform and dispatch function etc. to ensure reliable and safe two-way communications which are widely used for various scenarios.

Product Dimension:

(Height*Width*Depth) excluding antenna   102mm*52mm*33mm

Product Features:

1
1.8-inch color screen, different backlight modes optional
2
Time and Date Calibration
3
2/3/4G network can be manually/automatically switched
4
GPS positioning function
5
Displaying the user name and group name
6
Support group call, individual call
7
Signal strength Indicator
8
Current Battery Indicator
9
Key lock/unlock function
10
Support Emergency Alarm(SOS)
11
Voice Code 4K/8K optional
12
REAL-PTT platform/ CLOUD-PTT platform optional

Specifications:

l General Specifications










Frequency Range

B1/B3/B5/B7/B8/B20@FDD LTE

B38/B40/B41@TDD LTE

B1/B5/B5@WCDMA

B3/B8@GSM

B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE

B40@TDD LTE

B1/B2/B5/B8@WCDMA

B2/B3/B5/B5@GSM

B2/B4/B5/B12/B13/B14/B66/B71@FDD LTE

B2/B4/B5@WCDMA

Operating System LINUX
GPS Yes
SOS Yes
Working Mode Semi-Duplex
RX Sensitivity LTE ≤-96dBm(4G)

GSM/WCDMA≤-108dBm(2G/3G) ;

RF Power 23dBm≤P≤30dBm
Audio Output 500mW
Working Voltage DC3.7V
Battery Capacity 5200mAh
Dimension 52X33X102mm
Weight Around 220g (Battery& Antenna included)
Working Temperature -20°C – 60°C
Storage Temperature -30°C – 80°C

Application Scenarios:

Construction, airport, seaport, railway station, security guard, property management, shopping mall, hotel, warehouse, logistics, education, retail, manufacturing, institution, surveying and mapping, hospitality, restaurant, school and outdoor activities etc.
