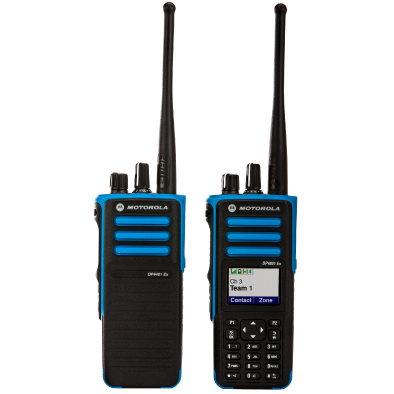

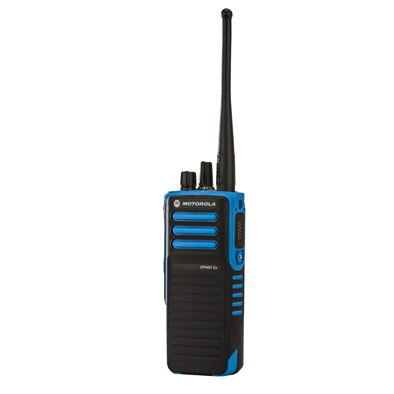

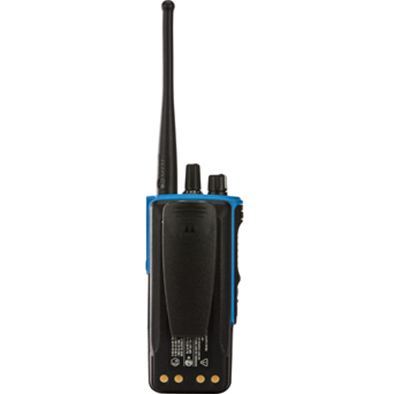

MOTOTRBO™ DP4401 EX ATEX PORTABLE TWO-WAY RADIO

Threats from explosive gas or combustible dust, on an oil rig or in an open mine, your workers confront them daily. Safe, reliable communication is absolutely critical in such dangerous environments. That’s where the power and performance of MOTOTRBO digital portable radio stands out.

The DP4401 Ex ATEX-certified portable delivers unrivaled voice and data communications with integrated GPS plus best-in-class audio that includes Intelligent Audio and customizable voice announcements.

Available in UHF and VHF frequency bands, the DP4401 Ex digital portable two-way radio is easy to use and features up to 32 channel capacity, three programmable buttons, emergency button, mandown and lone worker functions and IP67 specifications for submersibility.

Categories: , ,

Description

Features

Best-in-class Audio

Loud front-facing speaker and Intelligent Audio feature that automatically adjusts the radio volume according the environment’s noise level

Text Messaging

Send preprogrammed update messages to team members when radio communications need to be delivered without interrupting workers or guests

Integrated GPS

Locate mobile work teams using integrated GPS

Emergency Button

Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation

Security

Three levels of scrambling or encryption built-in for increased security: 16-bit Basic Privacy, 40-bit Enhanced Privacy or 256-bit AES256 encryption.

Transmit Interrupt

Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.

Performance Characteristics

  • Frequency band

    VHF, UHF

  • Repeater capable

    Yes

  • Battery life (based on a 05 05 90 duty cycle)

    19 hours in digital mode, 16 hours in analogue mode

  • Standard battery chemistry type

    Lithium Ion

  • 1 Watt

    Yes

Physical Characteristics

  • Emergency button

    Yes

  • Keypad

    None

  • Display

    No display

  • Weight (With 1400mAh LiIon battery)

    455.5g (16.1 oz)

  • Dimensions H x W x D (with standard battery)

    138.5 x 56.7 x 37.8 mm (5.45 x 2.23 x 1.49 in)

Radio Features

  • Transmit interrupt

    Yes

  • Digital private line

    Yes

  • Private line

    Yes

  • Monitor Permanent (Sticky) Monitor

    Yes

  • Lone worker

    Yes

  • GPS operation

    Yes

  • Voice announcement

    Yes

  • Signalling

    DMR, PL/DPL, MDC, Quik-Call II, 5-tone

  • Intelligent audio

    Yes

  • Programmable buttons

    Yes

  • Voice operated transmit (VOX)

    Yes

  • Time out timer

    Yes

  • Talkaround

    Yes

  • Scan types

    Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert

  • Group call

    Yes

  • One to one calling

    Yes

  • Missed call alerts

    Yes

  • CPS (Customer Programming Software)

    Yes

  • Channel spacing

    12.5, 25, 20

  • Number of channels

    32

  • Channel scan

    Yes

  • Call tones

    Yes

  • Call forward

    Yes

  • Busy channel lockout

    Yes

  • Integrated voice and data

    Yes

Technology

  • System type

    TDMA, Capacity Plus, Linked Capacity Plus, IP Site Connect

  • Digital technology

    Yes

User Environment

  • ATEX IECEx

    Yes

  • Submersible

    Yes

  • Mil spec

    810 C, 810 D, 810 E, 810 F, 810 G

  • Noise reduction software

    Yes

  • IP Standards

    IP67

Warranty

  • Standard warranty

    2 years
