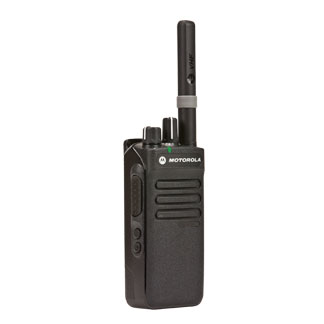

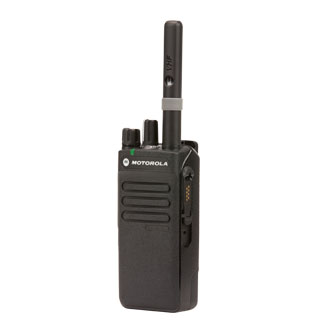

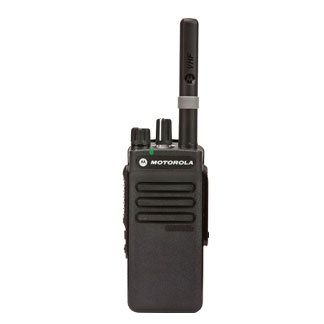

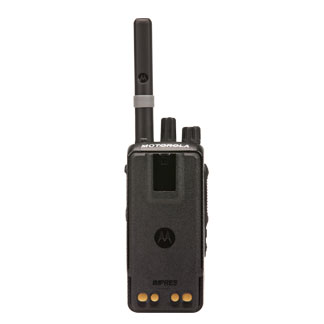

DP2400 PORTABLE TWO-WAY RADIO

Categories: , ,

Description

Features

IP Site Connect
A digital solution that uses an IP network (such as the internet) to extend the voice and data capabilities of MOTOTRBO. Use it to link up to 15 sites for communication among geographically dispersed locations, to create wide area coverage or enhance coverage at a single site with physical barriers.

Transmit Interrupt (option)
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.

Basic (standard) or Enhanced Privacy (option)
Built-in scrambling for increased security.

Rugged Design
Tightly sealed against wind and dust with a water protection rating of IP55.

Industry-leading Audio
When it comes to exceptional audio clarity, the quality of digital can’t be denied. DP2000 Series portables deliver digital quality throughout your coverage area plus unique features to help your employees hear and speak clearly, wherever they work. With Intelligent Audio, the radio volume automatically adjusts to compensate for background noise so workers don’t have to adjust their radio volume to avoid missing a call in loud situations or disturbing others when they move into quiet places.

Analogue and Digital Interoperability
Operates in both analogue and digital modes. Features such as the dynamic mixed mode repeater streamlines automatic switching between analogue and digital calls – meaning you only need one repeater to operate both modes.

Specification Sheet

MOTOTRBO DP2000 Series Accessories (ANZ) Specifications

dp2000_accessories

MOTOTRBO DP2000 Series Data Sheet (ANZ) Specifications

MOTOTRBO DP2000 Series Data Sheet (ANZ) Specifications

Performance Characteristics

  • Power output

    1W/4W – UHF, 1W/5W – VHF

  • Battery life (based on a 05 05 90 duty cycle)

    11.5 hours in digital mode, 8 hours in analog mode

  • Frequency band

    VHF, UHF

  • 4 5 Watt

    Yes

  • Repeater capable

    Yes

  • Standard battery chemistry type

    Lithium Ion

  • 1 Watt

    Yes

Physical Characteristics

  • Emergency button

    Programmable

  • Keypad

    None

  • Display

    No display

  • Weight (with standard battery)

    9.3 oz (265 g)

  • Dimensions H x W x D (with standard battery)

    122 x 56 x 36.4 mm (4.80 x 2.20 x 1.43 in.)

Radio Features

  • Transmit interrupt

    Yes

  • Digital private line

    Yes

  • Private line

    Yes

  • Monitor Permanent (Sticky) Monitor

    Yes

  • Lone worker

    Yes

  • Voice announcement

    Yes

  • Signalling

    MDC (Encode/Decode), Quik-Call II (Encode/Decode), DTMF Encode

  • Intelligent audio

    Yes

  • Programmable buttons

    Yes

  • Voice operated transmit (VOX)

    Yes

  • Time out timer

    Yes

  • Talkaround

    Yes

  • Scan types

    Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert

  • Phone book

    Yes

  • Group call

    Yes

  • One to one calling

    Yes

  • Missed call alerts

    Yes

  • CPS (Customer Programming Software)

    Yes

  • Channel spacing

    6.25, 12.5, 25

  • Number of channels

    16

  • Channel scan

    Yes

  • Caller ID

    Yes

  • Call tones

    Yes

  • Call forward

    Yes

  • Busy channel lockout

    Yes

Technology

  • System type

    Conventional, TDMA, Capacity Plus, IP Site Connect

  • Digital technology

    Yes

User Environment

  • IP Standards

    IP55

  • Mil spec

    810 C, 810 D, 810 E, 810 F, 810 G

  • Noise reduction software

    Yes

Warranty

  • Standard package

    IMPRES Li-Ion 2150 mAh battery (IP57), Standard UHF or VHF antenna, Accessory Dust Cover, 2.5″ Belt Clip (PMLN7008), User Guide, 2 year warranty.

  • Standard warranty

    2 years
