Description
Features
IP Site Connect
A digital solution that uses an IP network (such as the internet) to extend the voice and data capabilities of MOTOTRBO. Use it to link up to 15 sites for communication among geographically dispersed locations, to create wide area coverage or enhance coverage at a single site with physical barriers.
Transmit Interrupt (option)
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.
Basic (standard) or Enhanced Privacy (option)
Built-in scrambling for increased security.
Rugged Design
Tightly sealed against dust and water with a protection rating of IP55.
Industry-leading Audio
When it comes to exceptional audio clarity, the quality of digital can’t be denied. DP2000 Series portables deliver digital quality throughout your coverage area plus unique features to help your employees hear and speak clearly, wherever they work. With Intelligent Audio, the radio volume automatically adjusts to compensate for background noise so workers don’t have to adjust their radio volume to avoid missing a call in loud situations or disturbing others when they move into quiet places.

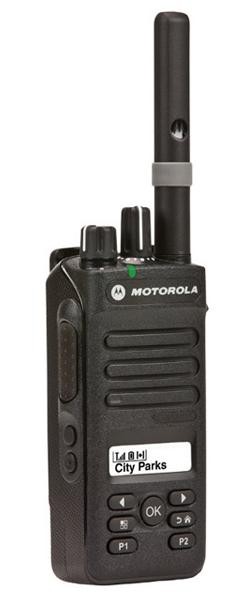

Crystal-clear Monochrome Display
Easy-to-read and navigate 2-line display.
Analogue and Digital Interoperability
Operates in both analogue and digital modes. Features such as the dynamic mixed mode repeater streamlines automatic switching between analogue and digital calls – meaning you only need one repeater to operate both modes.
Specification Sheet
MOTOTRBO DP2000 Series Accessories Fact Sheet
MOTOTRBO DP2000 Series Accessories Fact Sheet
MOTOTRBO DP2000 Series Data Sheet (ANZ) Specifications
MOTOTRBO DP2000 Series Data Sheet (ANZ) Specifications
Performance Characteristics
-
Power output
1W/4W – UHF, 1W/5W – VHF
-
Battery life (based on a 05 05 90 duty cycle)
11.5 hours in digital mode, 8 hours in analog mode
-
Frequency band
VHF, UHF
-
4 5 Watt
Yes
-
Repeater capable
Yes
-
Standard battery chemistry type
Lithium Ion
-
1 Watt
Yes
Physical Characteristics
-
Emergency button
Programmable
-
Keypad
Limited
-
Display
Limited, Monochrome
-
Weight (with standard battery)
10 oz (285 g)
-
Dimensions H x W x D (with standard battery)
4.80 x 2.20 x 1.43 in. (122 x 56 x 36.4 mm)
Radio Features
-
Transmit interrupt
Yes
-
Digital private line
Yes
-
Private line
Yes
-
Monitor Permanent (Sticky) Monitor
Yes
-
Lone worker
Yes
-
Voice announcement
Yes
-
Signalling
MDC (Encode/Decode), Quik-Call II (Encode/Decode), DTMF Encode
-
Intelligent audio
Yes
-
Programmable buttons
Yes
-
Voice operated transmit (VOX)
Yes
-
Time out timer
Yes
-
Talkaround
Yes
-
Scan types
Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert
-
Phone book
Yes
-
Group call
Yes
-
One to one calling
Yes
-
Missed call alerts
Yes
-
CPS (Customer Programming Software)
Yes
-
Channel spacing
12.5, 25, 6.25e
-
Number of channels
128
-
Channel scan
Yes
-
Caller ID
Yes
-
Call tones
Yes
-
Call forward
Yes
-
Busy channel lockout
Yes
Technology
-
System type
Conventional, TDMA, Capacity Plus, IP Site Connect
-
Digital technology
Yes
User Environment
-
IP Standards
IP55
-
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
-
Noise reduction software
Yes
Warranty
-
Standard package
IMPRES Li-Ion 2150 mAh battery (IP57), IMPRES Single-Unit Charger, Standard UHF or VHF antenna, Accessory Dust Cover, 2.5″ Belt Clip (PMLN7008), User Guide, 2 year warranty.
