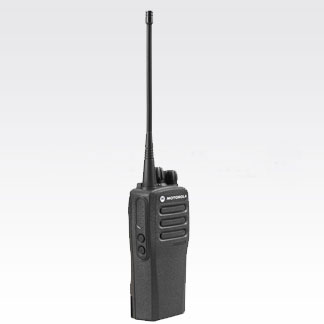

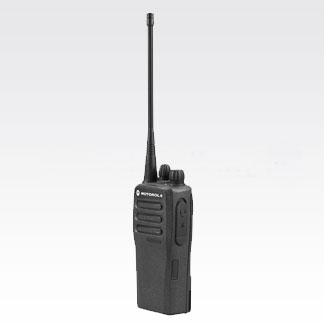

MOTOTRBO™ DP1400 DIGITAL PORTABLE TWO-WAY RADIO

The Motorola Solutions DP1400 is the entry-level radio which is packed with features you would expect on higher-end equipment.  As part of the MOTOTRBO family of radios, the DP1400 has superior audio quality, outstanding coverage, long-lasting battery life and more.

The DP1400 features 32 channels, allowing you to create more targeted communications for the different functions within your workforce.  The radio’s ergonomic design gives users access to all the controls even when wearing gloves, while the two programmable buttons and a wide selection of accessories allow many customisation options for every user.

The DP1400 is your lifeline in critical communications which means it must be built for the toughest situations.  Motorola Solutions tests the DP1400 to MIL-STD-810 to ensure it is built for the job. In addition to the standards testing, we also perform our unique Accelerated Life Testing (ALT) so you can be confident your radio will stand up to many years of use in the field.

Whatever your needs, the DP1400 provides a simple, reliable, cost-effective communication solution to help work teams connect, coordinate and collaborate to get the job done right. By combining the latest analogue and digital two-way radio technology, the DP1400 is perfect for the everyday user who wants to stay connected.

Categories: , ,

Description

Features

Analogue/Digital – Get all the benefits of digital, including better voice quality, better range and better battery life – but retain compatibility with your existing radio fleet while giving yourself the freedom to migrate to the latest technology at your own pace.

Automatic Gain Control – Automatically compensates for changes in voice level, whether you are speaking softly or loudly, turning your head, or moving the microphone further away from your mouth.

Transmit Interrupt Capability – Enables a supervisor to interrupt a DP1400 user to deliver critical communication exactly when and where it’s needed.

Compatible with Radio Management Suite – Program your radios quickly and efficiently, with Motorola Solutions Radio Management tool. Radios can be programmed in batches to a standardised template, giving error-free results and optimised performance.

Dual Capacity Direct Mode – Utilise the power of the 2-slot TDMA DMR standard to increase calling capacity and minimise licensing costs.

Encrypted Communications – Keep your communications from being intercepted and your channels secure with 16-bit encryption.

Lone Worker – DP1400 can help protect those working on their own by regularly prompting the user to press a button on the radio.  If the user does not respond within a specified length of time, a supervisor or dispatcher is notified that there may be a problem.

IP54 Rated – Dustproof and splashproof, so you can work with confidence in challenging environments.

Performance Characteristics

  • Frequency range

    VHF (136-174 MHz); UHF (403-470 MHz)

  • Power

    Power supply- 7.5V (Nominal)

  • Battery life (based on a 05 05 90 duty cycle)

    9.5 / 12.0 hours (NiMH 1400 mAh)
    11.5 / 14.5 hours (Li-Ion 1600 mAh)
    15.5 / 19.5 hours (Li-Ion 2250 mAh)
    19.5 / 25.0 hours (Li-Ion 2900 mAh)

  • Audio output

    0.5 W (Internal)

  • Power output

    1 or 5W (VHF)
    1 or 4W (UHF)

Physical Characteristics

  • Rotary on off volume

    Yes

  • Tri-colour status LED

    Yes

  • Emergency button

    Programmable

  • Keypad

    None

  • Display

    No Display

  • Weight (with standard battery)

    406g (NiMH 1400 mAh)
    341g (Slim Li-Ion 1600 mAh)
    346g (High Cap Li-Ion 2250 mAh)
    348g (Ultra-High Cap Li-Ion 2900 mAh)

  • Dimensions H x W x D (with standard battery)

    128 x 62 x 42 mm (NiMH 1400mAH)
    128 x 62 x 39 mm (Li-Ion 1600mAH)
    128 x 62 x 44 mm (Li-Ion 2250mAH)
    128 x 62 x 44 mm (Li-Ion 2900 mAh)

Radio Features

  • Programmable buttons

    Yes

  • Voice operated transmit (VOX)

    Yes

  • Time out timer

    Yes

  • Talkaround

    Yes

  • Signalling

    MDC/QCII/Digital

  • Scrambling

    Built-in

  • Scan types

    Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group

  • Selective calling

    Yes

  • Digital Private Line

    Yes

  • Private Line

    Yes

  • Monitor Permanent (Sticky) Monitor

    Yes

  • CPS (Customer Programming Software)

    Yes

  • Channel spacing (kHz)

    12.5, 25, 20, 12.5 (6.25 efficient)

  • Number of channels

    32

  • Channel scan

    Yes

  • Call tones

    Yes

  • Busy channel lockout

    Yes

  • Audio gain control

    Yes

  • Integrated voice and data

    Yes

  • Advanced Software Features

    Remote Monitor

Technology

  • System type

    Conventional, TDMA

  • Digital technology

    Yes

User Environment

  • Noise reduction software

    Yes

  • Accelerated life test

    Yes

  • Mil spec

    810 C, 810 D, 810 E, 810 F, 810 G, 810 H

  • IP Standards

    IP54

Warranty

  • Standard warranty

    2 years
