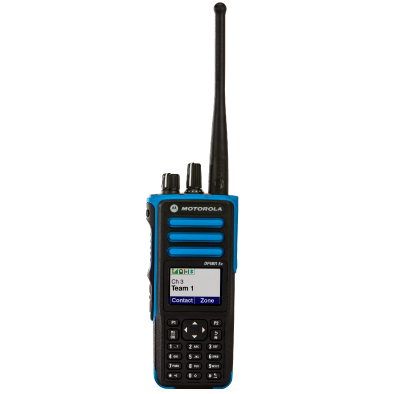

MOTOTRBO™ DP4801EX ATEX RADIO

Threats from explosive gas or combustible dust, on an oil rig or in an open mine, your workers confront them daily. Safe, reliable communication is absolutely critical in such dangerous environments. That’s where the power and performance of MOTOTRBO digital radio stands out.

The fully-featured DP4801 Ex ATEX certified portable radio delivers unrivalled voice and data communications with integrated GPS, text messaging, full-colour display with day/night mode to make reading text messages easier and best-in-class audio that includes Intelligent Audio and customizable voice announcements.

Available in UHF and VHF frequency bands, the DP4801 Ex features a 5-line display, full keypad, up to 1,000 channel capacity, five programmable buttons, emergency button, man down and lone worker functions and IP67 rating for submersibility.

Add to quote
Categories: , ,

Description

Features

Large, Full-colour Display

Features a 5-line colour display with a flexible menu-driven interface. Icons and large easy-to-use navigation buttons ease message reading and menu navigation.

Day/Night Mode on Display

This display has improved resolution for easier viewing even in broad daylight. It also also features a night mode that makes the screen easier to read in dark environments.

Best-in-class Audio

Loud front-facing speaker and Intelligent Audio feature automatically adjusts the radio volume according to the environment’s noise level.

Integrated GPS

Locate mobile work teams using integrated GPS.

Text Messaging

Use text messaging when discretion is required or routine communication needs to be delivered without interrupting workers or guests.

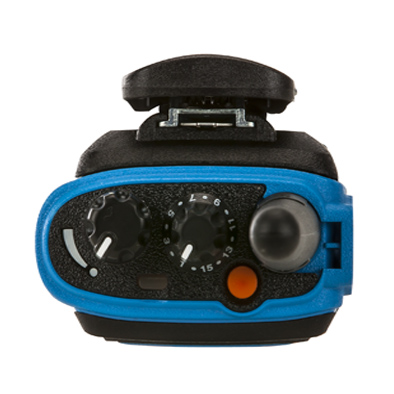

Emergency Button

Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation.

Security

Three levels of scrambling or encryption built-in for increased security: 16-bit Basic Privacy, 40-bit Enhanced Privacy or 256-bit AES256 encryption

Transmit Interrupt

Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.

IP Site Connect

A digital solution that uses the internet to extend the voice and data capabilities of MOTOTRBO. Use it to link up to 15 sites for communication among geographically dispersed locations, to create wide area coverage or enhance coverage at a single site with physical barriers.

Capacity Plus

Single-site digital trunking system that maximizes the capacity of your MOTOTRBO system. Use it to enable a high volume of voice and data communication for over a thousand users at a single site without adding new frequencies.

Linked Capacity Plus

Linked Capacity Plus is a multi-site digital trunking system configuration for the MOTOTRBO platform. It leverages the high capacity of Capacity Plus, with the wide area coverage capabilities of IP Site Connect to keep your staff at various locations connected with an affordable high capacity, wide area trunking solution.

Rugged, Reliable Design

Tightly sealed against wind and dust, and submersible in up to one meter of water for 30 minutes (IP67).

Productivity-enhancing Data Applications

Features the industry’s largest Application Developer Programme to enable a wide variety of customized applications including: location tracking, email gateways, dispatch, telephony, man-down and work order ticket management.

ATEX/IEC EX Cerified

Certified to the highest level for use in potentially explosive environments

Performance Characteristics

  • Frequency band

    VHF, UHF

  • Repeater capable

    Yes

  • Battery life (based on a 05 05 90 duty cycle)

    19 hours in digital mode, 16 hours in analogue mode

  • Standard battery chemistry type

    Lithium Ion

  • 1 Watt

    Yes

Physical Characteristics

  • Emergency button

    Yes

  • Keypad

    Full

  • Display

    Full, Color, Day and night mode

  • Weight (With 1400mAh LiIon battery)

    482.5g (17 oz)

  • Dimensions H x W x D (with standard battery)

    138.5 x 56.7 x 39.8 mm (5.45 x 2.23 x 1.57 in)

Radio Features

  • Transmit interrupt

    Yes

  • Monitor Permanent (Sticky) Monitor

    Yes

  • Lone worker

    Yes

  • GPS operation

    Yes

  • Voice announcement

    Yes

  • Signalling

    DMR, PL/DPL, MDC, Quik-Call II, 5-tone, DTMF, MPT1327 (option)

  • Intelligent audio

    Yes

  • Programmable buttons

    Yes

  • Voice operated transmit (VOX)

    Yes

  • Time out timer

    Yes

  • Talkaround

    Yes

  • Text messaging capable

    Yes

  • Scan types

    Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert

  • Phone book

    Yes

  • Group call

    Yes

  • One to one calling

    Yes

  • Missed call alerts

    Yes

  • CPS (Customer Programming Software)

    Yes

  • Channel spacing

    12.5, 25, 20

  • Number of channels

    1000

  • Channel scan

    Yes

  • Caller ID

    Yes

  • Call tones

    Yes

  • Call forward

    Yes

  • Busy channel lockout

    Yes

  • Integrated voice and data

    Yes

Technology

  • System type

    TDMA, Capacity Plus, Linked Capacity Plus, IP Site Connect

  • Digital technology

    Yes

User Environment

  • ATEX IECEx

    Yes

  • Submersible

    Yes

  • Mil spec

    810 C, 810 D, 810 E, 810 F, 810 G

  • Noise reduction software

    Yes

  • IP Standards

    IP67

Warranty

  • Standard warranty

    2 years
