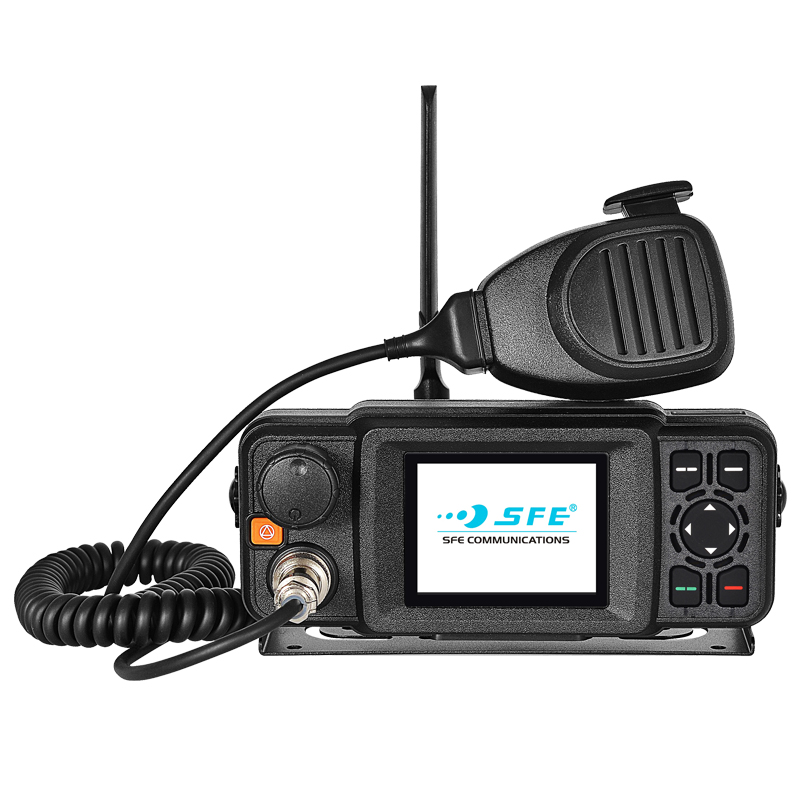

SEM1000 In-VehiclePoC Network Radio
Production Introduction:
SEM1000isan in-vehicle Push-to-talk Over Cellular(PoC) network radio that utilizes LTE/WCDMA/GSM cellular infrastructures and standards to enable instant two-way communications over Wide Area. It delivers Press-to-Talk(PTT) services over existing public mobile network and allows users to access a nationwide/worldwide radio network without distance limitation. SEM1000 is designed with powerful and superb clear audio output, noise cancellation function, 12V/24V DC input to realize optimal and durable performance, and ensure high-efficient instant communications. Features of multiple call modes such as group call, single calland good friends call provide reliable team communications to deliver enhanced efficiency and productivity. It provides user location, GPS tracking function, emergency call(SOS), easy-to-read color display, management platform and dispatch function etc. to ensure reliable and safe two-way communications which are widely used for various scenarios.
Product Dimension:
(Height*Width*Depth) excluding antenna 175mm*76mm*70mm
Product Features:
|
1
|
2.8-inch color screen, different backlight modes optional
|
|
2
|
Time and Date Calibration
|
|
3
|
2/3/4G network can be manually/automatically switched
|
|
4
|
GPS positioning function
|
|
5
|
Displaying the user name and group name
|
|
6
|
Support group call, individual call
|
|
7
|
Signal strength Indicator
|
|
8
|
Current Battery Indicator
|
|
9
|
Key lock/unlock function
|
|
10
|
Support Emergency Alarm(SOS)
|
|
11
|
Voice Code 4K/8K optional
|
|
12
|
REAL-PTT platform/ CLOUD-PTT platform optional
|
Specifications:
| General Specifications | |
| Frequency Range | B1/B3/B5/B7/B8/B20@FDD LTE
B38/B40/B41@TDD LTE B1/B5/B5@WCDMA B3/B8@GSM |
| B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE
B40@TDD LTE B1/B2/B5/B8@WCDMA B2/B3/B5/B5@GSM |
|
| B2/B4/B5/B12/B13/B14/B66/B71@FDD LTE
B2/B4/B5@WCDMA |
|
| Operating System | LINUX |
| GPS | Yes |
| SOS | Yes |
| Working Mode | Semi-Duplex |
| RX Sensitivity | LTE ≤-96dBm(4G)
GSM/WCDMA≤-108dBm(2G/3G) ; |
| RF Power | 23dBm≤P≤30dBm |
| Audio Output | 3W |
| Working Voltage | DC 12~24V |
| Dimension | 76X70X175mm |
| Weight | Around 320g (Battery& Antenna included） |
| Working Temperature | -20°C – 60°C |
| Storage Temperature | -30°C – 80°C |
Application Scenarios:
Management and dispatching of logistics, long vehicle, truck, taxi, bus, car, fleet etc.
